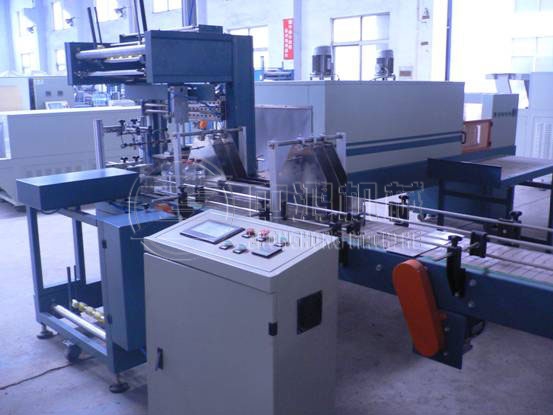

Production description:
Adopt import PLC procedure automatically control, with stable performance, precise control
Has the complete automation function from automatic delivering feed, finishing bottles, shrinking to cooling and shaping.
Film delivering adopts inductive switch control, can adjust the length of the film to reduce the loss.
The delivering motor adopts import transducer control to realize the stepless speed regulating.
Advanced spiral wind circulation structure, three layers of thermal-protective coating treatment, save the energy.
Reinforced cooling and shaping channel, the products can be quickly shaped, convenient to transport.
Application scope:
Combined packing of mineral water, beverage, liquor, pharmaceutical and chemical products, with no need for cork base, the product is firm and beautiful after packing.
Main echnical parameter:
| External dimension | L5400*W3400*H1850 |
| The dimension of hot thermo-wind stove | L3700*W920*H1800 |
| Max.Packing size | L600*W400*H350 |
| Packing speed | 6-8 |
| The speed of conveyor | 920 (Adjustable200) |
| Working power | Three phases, five lines 380V 24KW |
| Working pressure | 0.6-0.8 MPA |
